APS1056 - Fast Transient 600mA Step-Down Converter

Description

The APS1056 SwitchReg is a member of AnalogicTech's Total Power Management IC™ (TPMIC™) product family.

It is a 1.4MHz stepdown converter with an input voltage range of 2.7V to 5.5V and output voltage as low as 0.6V.

It is optimized to react quickly to a load variation.

Features

  • SwitchReg™ VIN Range: 2.7V to 5.5V VOUT Fixed or Adjustable from 0.6V to VIN 27µA No Load Quiescent Current Up to 98% Efficiency 600mA Max Output Current 1.4MHz Switching Frequency 120µs Soft Start Fast Load Transient Over-Temperature Protection Current Limit Protection 100% Duty Cycle Low-Dropout Operation.

📥 Download Datasheet

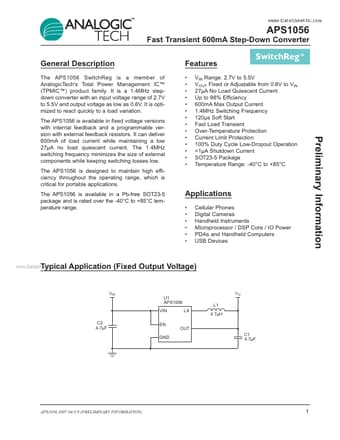

Datasheet preview – APS1056

Datasheet Details

Part number APS1056
Manufacturer Advanced Analogic Technologies
File Size 675.85 KB
Description Fast Transient 600mA Step-Down Converter
Datasheet download datasheet APS1056 Datasheet
Additional preview pages of the APS1056 datasheet.

📁 Similar Datasheet

  • APS1006 - 600mA Synchronous Step-Down Converter (APSemi)
  • APS1086 - 600mA Synchronous Step-Down Converter (APSemi)
  • APS11200 - High-Temperature Precision Hall-Effect Switch (Allegro)
  • APS11202 - Precision Hall-Effect Switch (Allegro)
  • APS11205 - High-Temperature Hall-Effect Switch (Allegro)
  • APS11450 - Three-Wire Hall-Effect Switch (Allegro)
  • APS11500 - Two-Wire Hall-Effect Switch (Allegro)
  • APS11700 - Micropower Vertical and Planar Hall-Effect Switches (Allegro)
  • APS11753 - Low-Voltage Micropower Switch (Allegro)
  • APS11760 - Micropower Vertical and Planar Hall-Effect Switches (Allegro)
Other Datasheets by Advanced Analogic Technologies

    Full PDF Text Transcription

    Click to expand full text
    APS1056 Fast Transient 600mA Step-Down Converter General Description The APS1056 SwitchReg is a member of AnalogicTech's Total Power Management IC™ (TPMIC™) product family. It is a 1.4MHz stepdown converter with an input voltage range of 2.7V to 5.5V and output voltage as low as 0.6V. It is optimized to react quickly to a load variation. The APS1056 is available in fixed voltage versions with internal feedback and a programmable version with external feedback resistors. It can deliver 600mA of load current while maintaining a low 27µA no load quiescent current. The 1.4MHz switching frequency minimizes the size of external components while keeping switching losses low.
