ACS754LCB-100-PFF

The ACS754LCB-100-PFF is Hall Effect-Based Linear Current Sensor designed by Allegro.

Product Overview

Allegro

Datasheet Details

Part number	ACS754LCB-100-PFF, ACS754LCB-100
Manufacturer	Allegro
File Size	335.37 KB
Description	Hall Effect-Based Linear Current Sensor
Datasheet	ACS754LCB-100-Allegro.pdf
Note	This datasheet PDF includes multiple part numbers: ACS754LCB-100-PFF, ACS754LCB-100. Please refer to the document for exact specifications by model.

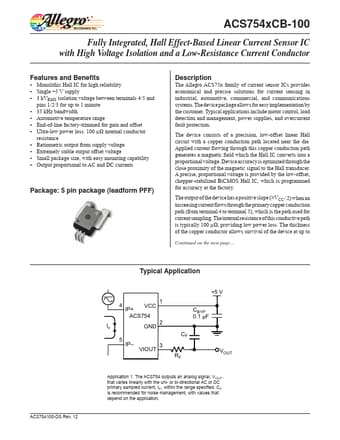

Additional preview pages of the ACS754LCB-100-PFF datasheet.

Product details

Description

The Allegro ACS75x family of current sensor ICs provides economical and precise solutions for current sensing in industrial, automotive, commercial, and communications systems.

Features

Monolithic Hall IC for high reliability.
Single +5 V supply.
3 kVRMS isolation voltage between terminals 4/5 and pins 1/2/3 for up to 1 minute.
35 kHz bandwidth.
Automotive temperature range.
End-of-line factory-trimmed for gain and offset.
Ultra-low power loss: 100 μΩ internal conductor resistance.
Ratiometric output from supply voltage.
Extremely stable output offset voltage.
Small package size, with easy mounting capability.
Output propo.
