ACS750ECA-100

The ACS750ECA-100 is Hall Effect-Based Linear Current Sensor designed by Allegro MicroSystems.

Product Overview

Allegro MicroSystems

Datasheet Details

Part number	ACS750ECA-100, ACS750xCA-100
Manufacturer	Allegro MicroSystems
File Size	349.79 KB
Description	Hall Effect-Based Linear Current Sensor
Datasheet	ACS750xCA-100_AllegroMicroSystems.pdf
Note	This datasheet PDF includes multiple part numbers: ACS750ECA-100, ACS750xCA-100. Please refer to the document for exact specifications by model.

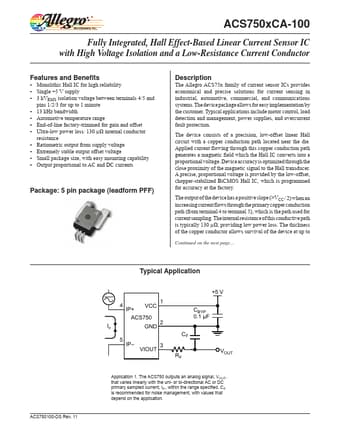

Additional preview pages of the ACS750ECA-100 datasheet.

Product details

Description

The Allegro ACS75x family of current sensor ICs provides economical and precise solutions for current sensing in industrial, automotive, commercial, and communications systems.

Features

Monolithic Hall IC for high reliability.
Single +5 V supply.
3 kVRMS isolation voltage between terminals 4/5 and pins 1/2/3 for up to 1 minute.
13 kHz bandwidth.
Automotive temperature range.
End-of-line factory-trimmed for gain and offset.
Ultra-low power loss: 130 μΩ internal conductor resistance.
Ratiometric output from supply voltage.
Extremely stable output offset voltage.
Small package size, with easy mounting capability.
Output propo.
