A8518 Fault-Tolerant LED Driver

A8518 Description

A8518 and A8518-1 Wide Input Voltage Range, High-Efficiency, Fault-Tolerant LED Driver .
The A8518 is a multi-output LED driver for small-size LCD backlighting.

A8518 Features

* Automotive AEC-100 qualified
* Fully integrated 42 V MOSFET for boost converter
* Fully integrated LED current sinks
* Withstands surge input to 40 VIN for load dump
* Operates down to 3.9 VIN (max) for idle stop
* Drives two strings of LEDs

A8518 Applications

* Automotive infotainment backlighting
* Automotive cluster
* Automotive center stack VIN CIN VC RPU
* optional L1 D1 RSC Q1 RADJ ROVP GATE VSENSE VIN VDD SW VOUT OVP CVDD A8518 LED1 FAULT PWM APWM ISET RISET LED2 COMP AGND PGND CP GND VOUT > VIN COUT1

📥 Download Datasheet

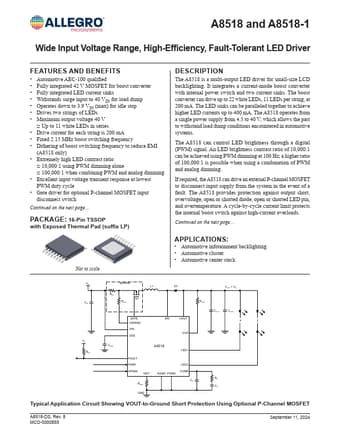

Preview of A8518 PDF
