A8515 Fault Tolerant LED Driver

A8515 Description

A8515 Wide Input Voltage Range, High Efficiency Fault Tolerant LED Driver .
TheA8515 is a multi-output white LED (WLED) driver for LCD backlighting in consumer and industrial displays.

A8515 Features

* Wide input voltage range: 5 to 40 V
* Maximum LED current of 120 mA
* TSSOP-16 (LP) package; exposed pad offers best-in-class thermal performance
* Typical LED accuracy of 0.5%, and 0.5% for LED-to-LED matching
* Internal bias supply for single-supply operat

A8515 Applications

* Desktop LCD flat panel displays (FPD)
* Flat panel video displays
* LCD TVs and monitors Not to scale Typical Application Diagram VIN 10 to 14 V L1 10 µH D1 2 A / 60 V VOUT CIN 4.7 µF/ 50 V VC 100 kΩ CVDD 0.1 µF NC GATE VSENSE VIN VDD SW A8515 PAD OVP RISET 8.2

📥 Download Datasheet

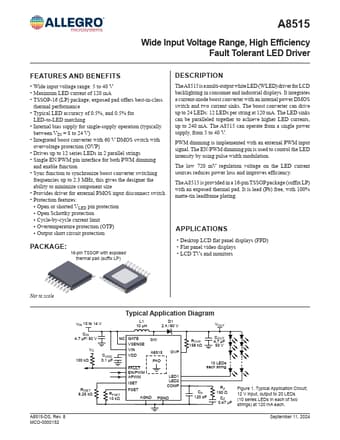

Preview of A8515 PDF
