A6213-1, A6213 PWM Dimmable Buck Regulator LED Driver

A6213-1 Description

A6213 and A6213-1 Automotive-Grade, Constant-Current PWM Dimmable Buck Regulator LED Driver .
The A6213 is a single IC switching regulator that provides constant-current output to drive high-power LEDs.

A6213-1 Features

* AEC-Q100 qualified
* Supply voltage 6 to 48 V
* True average output current control
* 3 A maximum output over operating temperature range (1.5 A for A6213-1)
* Cycle-by-cycle current limit
* Integrated MOSFET switch
* Dimming via direct logic

A6213-1 Applications

* Automotive lighting
* Daytime running lights
* Front and rear fog lights
* Turn/stop lights
* Map light
* Dimmable interior lights TYPICAL APPLICATION CIRCUIT VIN (6 to 48 V) GND C1 R1 EN Enable/PWM Dimming (100 Hz to 2 kHz) 1 VIN 2 TON 3 EN 4 CS A6213 S

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: A6213-1, A6213. Please refer to the document for exact specifications by model.

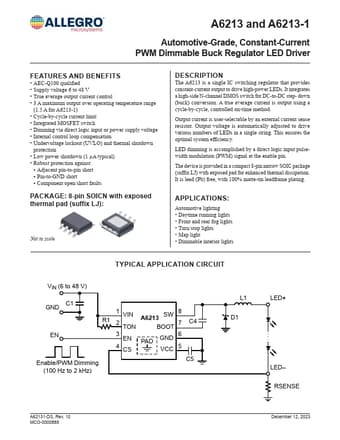

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
A6213-1, A6213
Manufacturer
Allegro
File Size
2.39 MB
Datasheet
A6213-Allegro.pdf
Description
PWM Dimmable Buck Regulator LED Driver
Note
This datasheet PDF includes multiple part numbers: A6213-1, A6213.
Please refer to the document for exact specifications by model.
