A6217 PWM Dimmable Buck Regulator LED Driver

A6217 Description

A6217 and A6217-1 Automotive-Grade, Constant-Current PWM Dimmable Buck Regulator LED Driver .
The A6217 is a single IC switching regulator that provides constant-current output to drive high-power LEDs.

A6217 Features

* AEC-Q100 qualified
* 6 to 48 V supply voltage
* True average output current control
* 3 A maximum output over operating temperature range (1.5 A for A6217-1)
* Cycle-by-cycle current limit
* Integrated MOSFET switch
* Enable / PWM dimming vi

A6217 Applications

* Automotive lighting
* Daytime running lights
* Front and rear fog lights
* Turn/stop lights
* Map light
* Dimmable interior lights VIN (6 to 48 V) TYPICAL APPLICATION CIRCUIT GND C1 EN 1, 2 R1 3 VIN TON A6217 (EJ) SW BOOT 9,10 8 C4 4 EN 5 CS PAD GN

📥 Download Datasheet

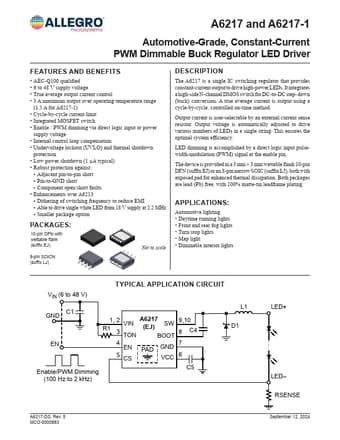

Preview of A6217 PDF
