A1377 Highly Programmable Linear Hall-Effect Sensor

A1377 Description

A1377 Highly Programmable Linear Hall-Effect Sensor IC .
The Allegro™ A1377 programmable linear Hall-effect sensor IC is designed for applications that require high accuracy and high resolution without compr.

A1377 Features

* On-board diagnostics
* Broken ground detection
* VCC undervoltage detection
* VCC overvoltage detection
* Customer-programmable offset, sensitivity, polarity, and output clamps
* Integrated power supply and output bypass capacitors
* Customer

A1377 Applications

* that require high accuracy and high resolution without compromising bandwidth. The A1377 employs segmented, linearly interpolated temperature compensation technology. This improvement greatly reduces the total error of the device across the whole temperature range. As a result, the device is ideally

📥 Download Datasheet

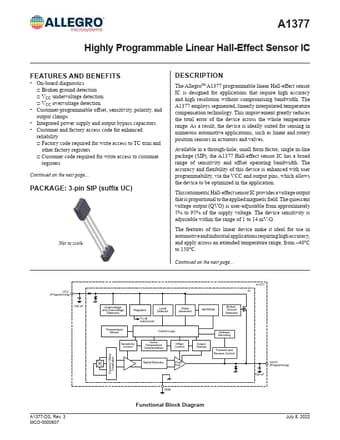

Preview of A1377 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
A1377
Manufacturer
Allegro
File Size
1.80 MB
Datasheet
A1377-Allegro.pdf
Description
Highly Programmable Linear Hall-Effect Sensor
