A1302, A1301 Continuous-Time Ratiometric Linear Hall Effect Sensor

A1302 Description

A1301 and A1302 Continuous-Time Ratiometric Linear Hall-Effect Sensor ICs .
The A1301 and A1302 are continuous-time, ratiometric, linear Hall-effect sensor ICs.

A1302 Features

* Low-noise output
* Fast power-on time
* Ratiometric rail-to-rail output
* 4.5 to 6.0 V operation
* Solid-state reliability
* Factory-programmed at end-of-line for optimum performance
* Robust ESD performance Packages: 3-Pin SOT23W (suffix LH

A1302 Applications

* over extended temperature ranges, from
* 40°C to 125°C. Two device package types are available: LH, a 3-pin SOT23W type for surface mount, and UA, a 3-pin ultramini SIP for through-hole mount. They are lead (Pb) free (suffix,
* T) with 100% matte tin plated leadframes. V+ VCC CBYPASS

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: A1302, A1301. Please refer to the document for exact specifications by model.

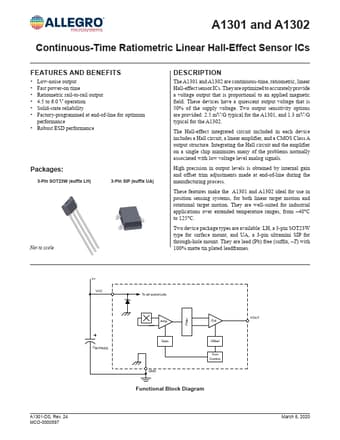

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
A1302, A1301
Manufacturer
Allegro MicroSystems
File Size
543.58 KB
Datasheet
A1301_AllegroMicroSystems.pdf
Description
Continuous-Time Ratiometric Linear Hall Effect Sensor
Note
This datasheet PDF includes multiple part numbers: A1302, A1301.
Please refer to the document for exact specifications by model.
