A1361, A1360 Low-Noise Programmable Linear Hall Effect Sensor ICs

A1361 Description

A1360, A1361, and A1362 Low-Noise Programmable Linear Hall Effect Sensor ICs with Adjustable Bandwidth (50 kHz Maximum) and Analog Output .
New applications for linear output Hall effect sensing, such as current measurement, require both high accuracy and increased sensor bandwidth.

A1361 Applications

* Customer programmable offset and sensitivity
* Factory programmed 0% / °C sensitivity temperature coefficient
* Programmability at end-of-line
* Selectable unipolar or bipolar quiescent voltage levels
* Selectable sensitivity ranges between 0.7 and 1.4 mV/G

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: A1361, A1360. Please refer to the document for exact specifications by model.

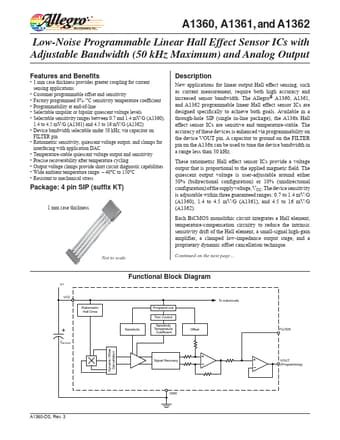

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
A1361, A1360
Manufacturer
Allegro
File Size
637.71 KB
Datasheet
A1360-Allegro.pdf
Description
Low-Noise Programmable Linear Hall Effect Sensor ICs
Note
This datasheet PDF includes multiple part numbers: A1361, A1360.
Please refer to the document for exact specifications by model.
