A1230 Ultra-Sensitive Dual-Channel Quadrature Hall-Effect Bipolar Switch

A1230 Description

A1230 Ultra-Sensitive Dual-Channel Quadrature Hall-Effect Bipolar Switch .
The A1230 is a dual-channel, bipolar switch with two Halleffect sensing elements, each providing a separate digital output for speed and direction sig.

A1230 Features

* AEC-Q100 automotive qualified
* Two matched Hall-effect switches on a single substrate
* 1 mm Hall element spacing
* Superior temperature stability and industry-leading jitter performance through use of advanced chopperstabilization topology
* Integrated reg

A1230 Applications

* The A1230 is a highly sensitive, temperature-stable magnetic sensing device ideal for use in ring magnet based, speed and direction systems located in harsh automotive and industrial environments. The A1230 monolithic integrated circuit (IC) contains two independent Hall-effect bipolar switches loc

📥 Download Datasheet

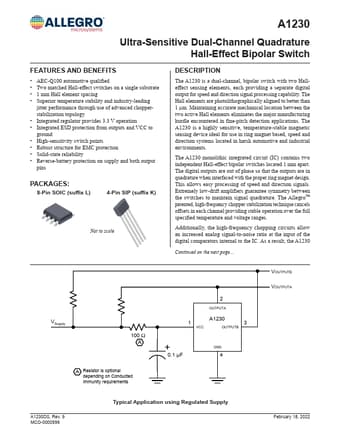

Preview of A1230 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
A1230
Manufacturer
Allegro
File Size
0.96 MB
Datasheet
A1230-Allegro.pdf
Description
Ultra-Sensitive Dual-Channel Quadrature Hall-Effect Bipolar Switch
