A1233 Dual-Channel Hall-Effect Direction Detection Sensor

A1233 Description

A1233 2 - Dual-Channel Hall-Effect Direction Detection Sensor IC .
The A1233 is a dual-channel Hall-effect sensor IC ideal for use in speed and direction sensing applications incorporating encoder ring-magnet targets.

A1233 Features

* ▪ AEC-Q100 automotive qualified ▪ Quality Managed (QM), ISO 26262 compliant ▪ Precisely aligned dual Hall elements ▪ Tightly matched magnetic switchpoints ▪ Speed and direction outputs ▪ Individual Hall element outputs (L package) ▪ Output short-circuit protection ▪ Operation from an unregulated pow

A1233 Applications

* incorporating encoder ring-magnet targets. The A1233 provides various output signals that indicate speed and direction of target rotation. The Hall elements are both photolithographically aligned to better than 1 μm. Maintaining accurate displacement between the two active Hall elements eliminates t

📥 Download Datasheet

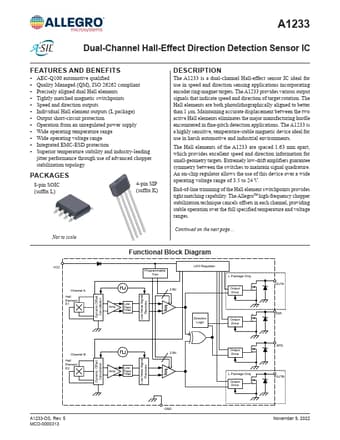

Preview of A1233 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
A1233
Manufacturer
Allegro
File Size
870.74 KB
Datasheet
A1233-Allegro.pdf
Description
Dual-Channel Hall-Effect Direction Detection Sensor
