STR-A6052M, STR-A60xxM Current Mode Control PWM Regulator

STR-A6052M Description

www.DataSheet.co.kr STR-A60xxM Current Mode Control PWM Regulator IC For Switching Power Supplies .
The STR-A60xxM series are power ICs for switching power supplies, incorporating a power MOSFET and a current mode PWM controller IC.

STR-A6052M Features

* ▪ Small DIP8 package with 8 to 24 W power output 230 VAC ▪ Current Mode PWM control with 67 kHz switching frequency ▪ Built-in Random Switching function, reducing EMI noise, and simplifying EMI filters, and therefore reducing cost ▪ Built-in Slope Compensation function, avoiding subharmonic oscillat

STR-A6052M Applications

* For switching power supplies used in:
* Battery chargers for cell phones, digital cameras, video cameras, shavers, emergency lights
* Stand-by power for LCD TVs, desktop PCs, LB Printers, audio equipment
* Small switched-mode power supplies for inkjet printers, DVD/CD player

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STR-A6052M, STR-A60xxM. Please refer to the document for exact specifications by model.

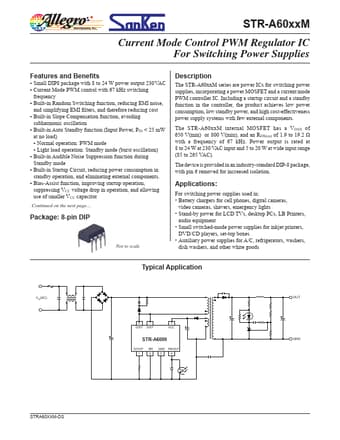

datasheet Preview Page 2 datasheet Preview Page 3
