A8447 - High Voltage Step Down Regulator

A8447 Description

A8447 High Voltage Step Down Regulator .
The A8447 is a 3 A, high efficiency general-purpose buck regulator designed for a wide variety of applications.

A8447 Applications

* The output voltage is adjustable from 0.8 to 24 V, based on a resistor divider and the 0.8 V ±2% reference. External components include an external clamping diode, inductor, and filter capacitor. The offtime is determined by an external resistor to ground. It operates in both continuous and discont

📥 Download Datasheet

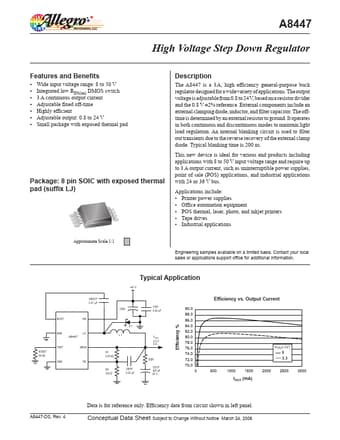

Preview of A8447 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
A8447
Manufacturer
Allegro MicroSystems
File Size
524.89 KB
Datasheet
A8447_AllegroMicroSystems.pdf
Description
High Voltage Step Down Regulator
