A8440 - 4-CHANNEL WHITE LED DRIVER

A8440 Description

AiT Semiconductor Inc.www.ait-ic.com A8440 4CHANNEL WHITE LED DRIVER 1x /1.5x CHARGE PUMP DISPLAY BACKLIGHT SOLUTION .
FEATURES The A8440 is a complete backlight display solution that is designed to independently control LEDs.

A8440 Features

* The A8440 is a complete backlight display solution that is designed to independently control LEDs. The A8440 is a charge pump WLED driver capable of driving up to 4 LEDs with 30mA each LED. Its four tightly regulated current sources ensure excellent LED current and brightness matching. LED driver c

A8440 Applications

* powered by Li-Ion battery, requiring only for low cost ceramic capacitors. The A8440 provides excellent efficiency by operating the charge pump in a gain of 1 or 1.5. Maximum efficiency is achieved over Li-Ion battery voltage range by selecting the proper gain based on the LED forward voltage requir

📥 Download Datasheet

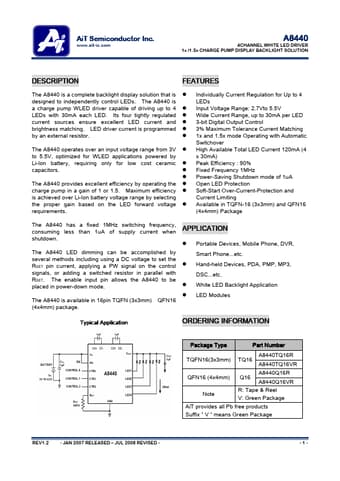

Preview of A8440 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
A8440
Manufacturer
AiT Semiconductor
File Size
658.62 KB
Datasheet
A8440-AiTSemiconductor.pdf
Description
4-CHANNEL WHITE LED DRIVER
