AFE2050FB, AFE2050FB-Alfa - ESD Protection Array

Alfa-MOS

The AFE2050FB by Alfa-MOS is a ESD Protection Array. Below is the official datasheet preview.

📥 Download Datasheet

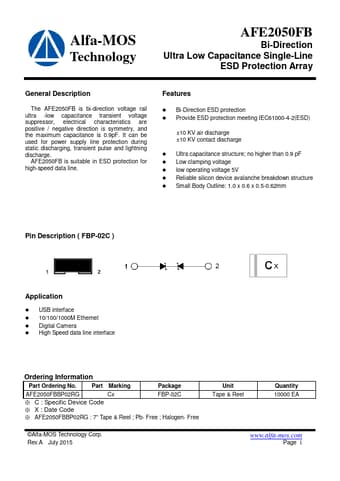

AFE2050FB ESD Protection Array by Alfa-MOS - Datasheet Preview — Official preview page of the **AFE2050FB** ESD Protection Array datasheet (Alfa-MOS).

Datasheet Details

Part number	AFE2050FB, AFE2050FB-Alfa
Manufacturer	Alfa-MOS
File Size	261.33 KB
Description	ESD Protection Array
Datasheet	AFE2050FB-Alfa-MOS.pdf
Note	This datasheet PDF includes multiple part numbers: AFE2050FB, AFE2050FB-Alfa. Please refer to the document for exact specifications by model.
Additional preview pages of the AFE2050FB datasheet.

AFE2050FB Product details

Description

The AFE2050FB is bi-direction voltage rail ultra -low capacitance transient voltage suppressor, electrical characteristics are positive / negative direction is symmetry, and the maximum capacitance is 0.9pF.

Features

Bi-Direction ESD protection Provide ESD protection meeting IEC61000-4-2(ESD) ±10 KV air discharge ±10 KV contact discharge Ultra capacitance structure; no higher than 0.9 pF Low clamping voltage low operating voltage 5V Reliable silicon device avalanche breakdown structure Small Body Outline: 1.0 x 0.6 x 0.5-0.62mm Pin.
