AFE2050, AFE2050-Alfa - ESD Protection Array

Name: AFE2050
SKU: AFE2050-1315858

Alfa-MOS

📥 Download Datasheet

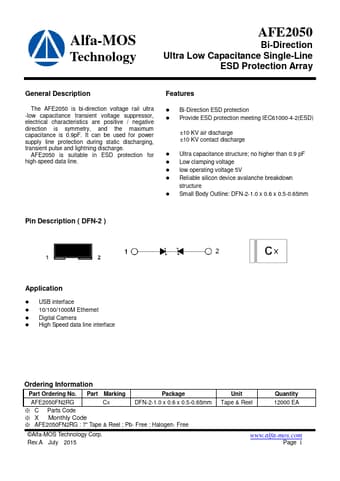

AFE2050 Datasheet Preview — This datasheet PDF includes multiple part numbers: AFE2050, AFE2050-Alfa. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	AFE2050, AFE2050-Alfa
Manufacturer	Alfa-MOS
File Size	243.81 KB
Description	ESD Protection Array
Datasheet	AFE2050-Alfa-MOS.pdf
Note	This datasheet PDF includes multiple part numbers: AFE2050, AFE2050-Alfa. Please refer to the document for exact specifications by model.

AFE2050 Product details

Description

The AFE2050 is bi-direction voltage rail ultra -low capacitance transient voltage suppressor, electrical characteristics are positive / negative direction is symmetry, and the maximum capacitance is 0.9pF.

Features

Bi-Direction ESD protection Provide ESD protection meeting IEC61000-4-2(ESD) ±10 KV air discharge ±10 KV contact discharge Ultra capacitance structure; no higher than 0.9 pF Low clamping voltage low operating voltage 5V Reliable silicon device avalanche breakdown structure Small Body Outline: DFN-2-1.0 x 0.6 x 0.5-0.65mm Pin.
