AH402H - High Voltage Hall Effect Switch Sensor

The AH402H by Alfa Electronics is a High Voltage Hall Effect Switch Sensor. Below is the official datasheet preview.

📥 Download Datasheet

AH402H High Voltage Hall Effect Switch Sensor by Alfa Electronics - Datasheet Preview — Official preview page of the **AH402H** High Voltage Hall Effect Switch Sensor datasheet (Alfa Electronics).

Datasheet Details

Part number	AH402H
Manufacturer	Alfa Electronics
File Size	1.06 MB
Description	High Voltage Hall Effect Switch Sensor
Datasheet	AH402H-AlfaElectronics.pdf

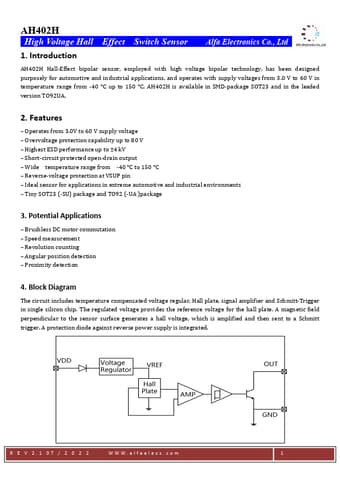

Additional preview pages of the AH402H datasheet.

AH402H Product details

Description

Alfa Electronics Co., Ltd TO92S 6. Ordering information Partnumber AH402HUA AH402HSU package TO92S SOT23 SOT23 Packing Bulk, 1000 pieces/bag Reel, 3000pieces/reel Ambient, TA -40℃ to 150℃ -40℃ to 150℃ 7. Pin assignment SOT23-3LPin number 1 2 3 TO92SPin number 1 2 3 Name VSUP GND VOUT Function Power supply Ground Open collector output with a pull-up resistor 8. Absolute Maximum Ratings Parameters Power supply Voltage Output voltage Output current sink Operating ambient temperature S

Features

Operates from 3.0V to 60 V supply voltage.
Overvoltage protection capability up to 80 V.
Highest ESD performance up to ±4 kV.
Short-circuit protected open-drain output.
Wide temperature range from -40 °C to 150 °C.
Reverse-voltage protection at VSUP pin.
Ideal sensor for.
