AH402F - High Voltage Hall Effect Switch

The AH402F by Alfa Electronics is a High Voltage Hall Effect Switch. Below is the official datasheet preview.

📥 Download Datasheet

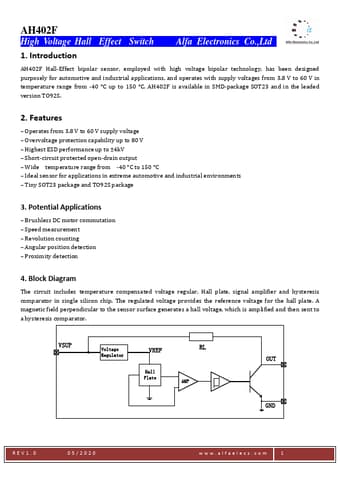

Official preview page of the AH402F High Voltage Hall Effect Switch datasheet (Alfa Electronics).

Datasheet Details

Part number AH402F
Manufacturer Alfa Electronics
File Size 680.38 KB
Description High Voltage Hall Effect Switch
Datasheet download datasheet AH402F-AlfaElectronics.pdf
Additional preview pages of the AH402F datasheet.

AH402F Product details

Description

Alfa Electronics Co.,Ltd A402F XXX 12 3 GND 2 A402F XXX VSUP GND VOUT TO92S 1 VSUP 3 VOUT SOT23 6. Ordering information Partnumber package AH402FUA TO92S AH402FSU SOT23 Packing Bulk, 1000 pieces/bag Reel, 3000pieces/reel Ambient, TA -40℃ to 150℃ -40℃ to 150℃ 7. Pin assignment SOT23-3LPin number 1 2 TO92SPin number 1 2 3 3 Name VSUP GND VOUT Function Power supply Ground Open collector with a internal pull-up resistor 8. Absolute Maximum Ratings Parameters Power supply Volta
