DTA114EE - BIAS RESISTOR TRANSISTOR

Product Overview

📥 Download Datasheet

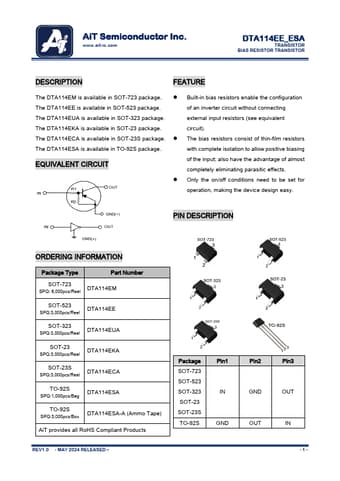

Datasheet preview – DTA114EE

Datasheet Details

Part number DTA114EE
Manufacturer AiT Semiconductor
File Size 1.44 MB
Description BIAS RESISTOR TRANSISTOR
Datasheet download datasheet DTA114EE Datasheet
Note This datasheet PDF includes multiple part numbers: DTA114EE, DTA114EM.
Please refer to the document for exact specifications by model.
Additional preview pages of the DTA114EE datasheet.

Product details

Description

FEATURE The DTA114EM is available in SOT-723 package. The DTA114EE is available in SOT-523 package. The DTA114ESA is available in TO-92S package. Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit).
