DTA114ESA, DTA114EM - BIAS RESISTOR TRANSISTOR

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DTA114ESA, DTA114EM. Please refer to the document for exact specifications by model.

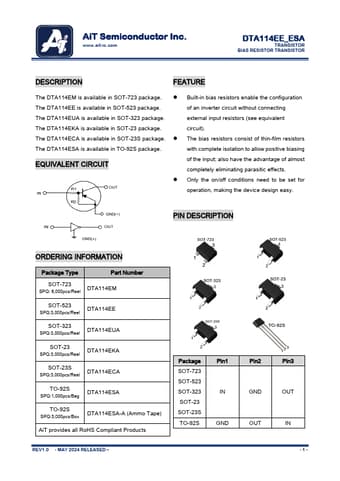

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number DTA114ESA, DTA114EM
Manufacturer AiT Semiconductor
File Size 1.44 MB
Description BIAS RESISTOR TRANSISTOR
Datasheet download datasheet DTA114EM-AiTSemiconductor.pdf
Note This datasheet PDF includes multiple part numbers: DTA114ESA, DTA114EM.
Please refer to the document for exact specifications by model.

DTA114ESA Product details

Description

FEATURE The DTA114EM is available in SOT-723 package. The DTA114EE is available in SOT-523 package. The DTA114ESA is available in TO-92S package. Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit).
