HDSP-2132, HDSP-2131 Datasheet - Agilent

HDSP-2132 (HDSP-21xx) Eight Character 5.0 mm (0.2 inch) Glass/Ceramic Intelligent 5 X 7 Alphanumeric Displays

The HDSP-2131 (yellow), HDSP2179 (orange), HDSP-2132 (high efficiency red) and the HDSP2133 (green) are eight-digit, 5 x 7 dot matrix, alphanumeric displays. The 5.0 mm (0.2 inch) high characters are packaged in a standard 7.64 mm (0.30 inch) 32 pin DIP. The on-board CMOS IC has the ability to decod.

HDSP-2132 Features

* Wide Operating Temperature Range -55°C to +85°C

* Smart Alphanumeric Display On-Board CMOS IC Built-In RAM ASCII Decoder LED Drive Circuitry

* 128 ASCII Character Set

* 16 User Definable Characters

* Programmable Features Individual Character Flashing Full D

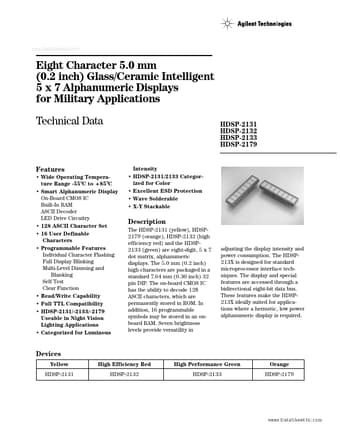

HDSP-2131_Agilent.pdf

HDSP-2132 Datasheet Preview — This datasheet PDF includes multiple part numbers: HDSP-2132, HDSP-2131. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HDSP-2132, HDSP-2131

Manufacturer:

Agilent

File Size:

271.85 KB

Description:

(hdsp-21xx) eight character 5.0 mm (0.2 inch) glass/ceramic intelligent 5 x 7 alphanumeric displays.

Note:

This datasheet PDF includes multiple part numbers: HDSP-2132, HDSP-2131.
Please refer to the document for exact specifications by model.
