HDSP-2111, HDSP-2107 Alphanumeric Displays

HDSP-2111 Description

HDSP-210x/-211x/-250x Series Eight-Character 5 mm and 7 mm Smart Alphanumeric Displays Data Sheet Overview The HDSP-210x/-211x/-250x series of produ.

HDSP-2111 Features

* are accessed through a bidirectional 8-bit data bus. Features
* X stackable (HDSP-21xx)
* XY stackable (HDSP-250x)
* 128-character ASCII decoder
* Programmable functions
* 16 user-definable characters
* Multi-level dimming and blanking
* TTL compatible CMOS IC
* Wave

HDSP-2111 Applications

* where displaying eight or more characters of dot matrix information in an aesthetically pleasing manner is required. These devices are 8-digit, 5×7 dot matrix, alphanumeric displays and are all packaged in a standard 15.24 mm (0.6 inch) 28-pin DIP. The onboard CMOS IC has the ability to decode 128 A

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HDSP-2111, HDSP-2107. Please refer to the document for exact specifications by model.

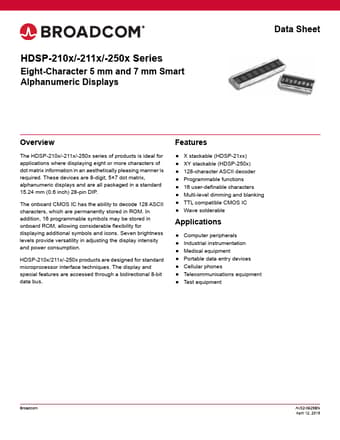

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HDSP-2111, HDSP-2107
Manufacturer
Broadcom
File Size
852.17 KB
Datasheet
HDSP-2107-Broadcom.pdf
Description
Alphanumeric Displays
Note
This datasheet PDF includes multiple part numbers: HDSP-2111, HDSP-2107.
Please refer to the document for exact specifications by model.
