5082-7626 - 7-Segment Displays

Download the 5082-7626 datasheet PDF. This datasheet also covers the 5082-7610 variant, as both devices belong to the same 7-segment displays family and are provided as variant models within a single manufacturer datasheet.

Description

The 7.6 mm (0.3 inch) and 10.9 mm (0.43 inch) LED seven segment displays are designed for viewing distances up to 3 metres (10 feet) and 5 metres (16 feet).

These devices use an industry standard size package and pinouts.

All devices are available as either common anode or common cathode.

Features

  • Industry Standard Size.
  • Industry Standard Pinout 7.62 mm (0.300 inch) DIP Leads on 2.54 mm (0.100 inch) Centers.
  • Choice of Colors AlGaAs Red, High Efficiency Red, Yellow, Green.
  • Excellent Appearance Evenly Lighted Segments ± 50° Viewing Angle Optimum Contrast Given by Gray Top Surface for AlGaAs Red and Green Devices Red Top Surface for HER Devices Yellow Top Surface for Yellow Devices.
  • Design Flexibility Common Anode or Common Cathode Single Digits.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (5082-7610-Agilent.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 5082-7626
Manufacturer Agilent
File Size 189.41 KB
Description 7-Segment Displays
Datasheet download datasheet 5082-7626 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
5082-7620 Seven-Segment Displays Broadcom
5082-7621 Seven-Segment Displays Broadcom
5082-7610 Seven-Segment Displays Broadcom
5082-7611 Seven-Segment Displays Broadcom
5082-7650 0.43-INCH SEVEN SEGMENT DISPLAYS QT Optoelectronics

Other Datasheets by Agilent

Part Number Description
5082-7620 7-Segment Displays
5082-7621 7-Segment Displays
5082-7623 7-Segment Displays
5082-762X 7.6mm (0.3 inch)/10.9mm (0.43 inch) Seven Segment Display
5082-7610 7-Segment Displays

Full PDF Text Transcription

Click to expand full text

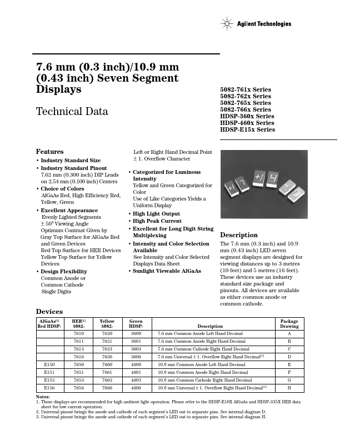

7.6 mm (0.3 inch)/10.9 mm (0.43 inch) Seven Segment Displays Technical Data 5082-761x Series 5082-762x Series 5082-765x Series 5082-766x Series HDSP-360x Series HDSP-460x Series HDSP-E15x Series Features • Industry Standard Size • Industry Standard Pinout 7.62 mm (0.300 inch) DIP Leads on 2.54 mm (0.100 inch) Centers • Choice of Colors AlGaAs Red, High Efficiency Red, Yellow, Green • Excellent Appearance Evenly Lighted Segments ± 50° Viewing Angle Optimum Contrast Given by Gray Top Surface for AlGaAs Red and Green Devices Red Top Surface for HER Devices Yellow Top Surface for Yellow Devices • Design Flexibility Common Anode or Common Cathode Single Digits Left or Right Hand Decimal Point ± 1.
