5082-7610 - Seven-Segment Displays

Product Overview

Broadcom

📥 Download Datasheet

5082-7610 Seven-Segment Displays by Broadcom - Datasheet Preview — Datasheet preview – 5082-7610

Datasheet Details

Part number	5082-7610
Manufacturer	Broadcom
File Size	1.03 MB
Description	Seven-Segment Displays
Datasheet	5082-7610 Datasheet

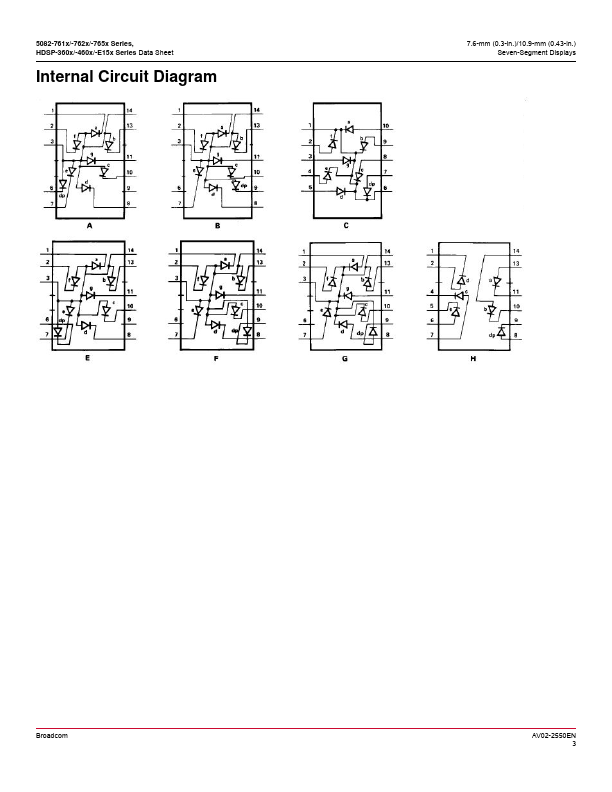

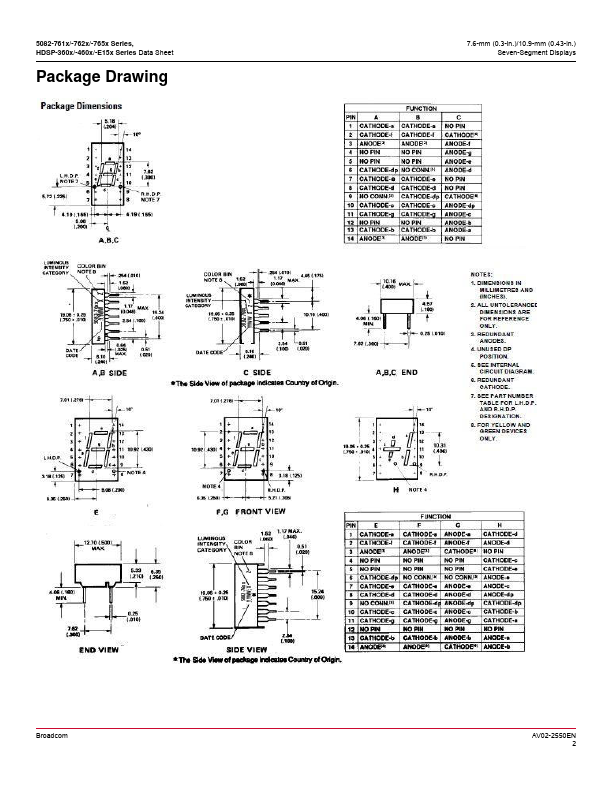

Additional preview pages of the 5082-7610 datasheet.

Product details

Description

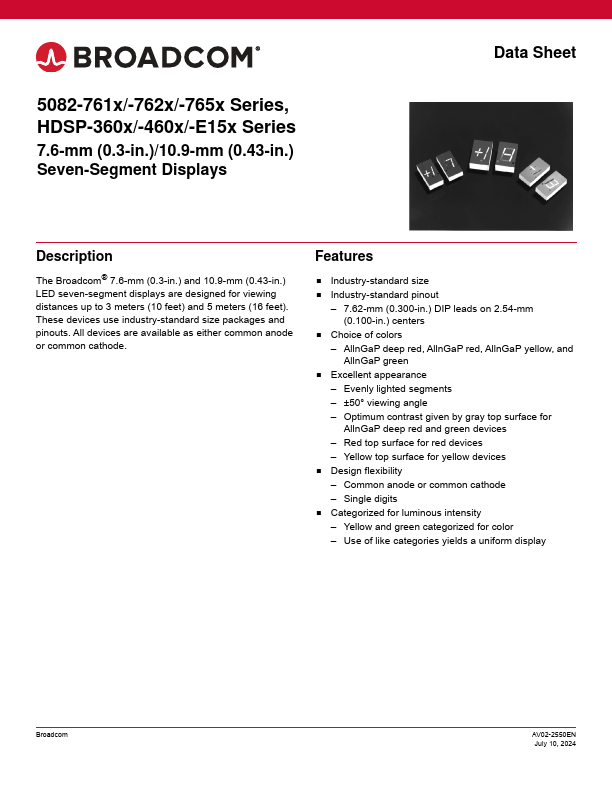

The Broadcom® 7.6-mm (0.3-in.) and 10.9-mm (0.43-in.) LED seven-segment displays are designed for viewing distances up to 3 meters (10 feet) and 5 meters (16 feet).

Features

Industry-standard size.
Industry-standard pinout.
7.62-mm (0.300-in. ) DIP leads on 2.54-mm (0.100-in. ) centers.
Choice of colors.
AllnGaP deep red, AllnGaP red, AllnGaP yellow, and AllnGaP green.
Excellent appearance.
Evenly lighted segments.
±50° viewing angle.
Optimum contrast given by gray top surface for AllnGaP deep red and green devices.
Red top surface for red devices.
Yellow top surface for yellow devices.
