5082-7610 - 7-Segment Displays

Name: 5082-7610
SKU: 5082-7610-847731

Agilent

📥 Download Datasheet

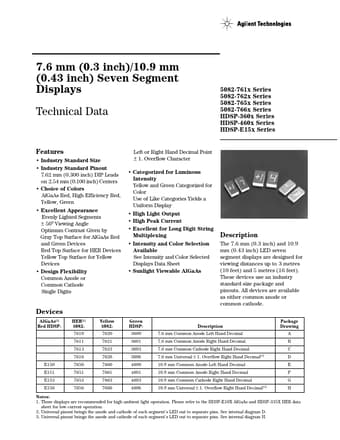

5082-7610 Datasheet Preview — Preview of 5082-7610 PDF

Datasheet Details

Part number	5082-7610
Manufacturer	Agilent
File Size	189.41 KB
Description	7-Segment Displays
Datasheet	5082-7610-Agilent.pdf

5082-7610 Product details

Description

The 7.6 mm (0.3 inch) and 10.9 mm (0.43 inch) LED seven segment displays are designed for viewing distances up to 3 metres (10 feet) and 5 metres (16 feet).

Features

Industry Standard Size.
Industry Standard Pinout 7.62 mm (0.300 inch) DIP Leads on 2.54 mm (0.100 inch) Centers.
Choice of Colors AlGaAs Red, High Efficiency Red, Yellow, Green.
Excellent Appearance Evenly Lighted Segments ± 50° Viewing Angle Optimum Contrast Given by Gray Top Surface for AlGaAs Red and Green Devices Red Top Surface for HER Devices Yellow Top Surface for Yellow Devices.
Design Flexibility Common Anode or Common Cathode Single Digits.
