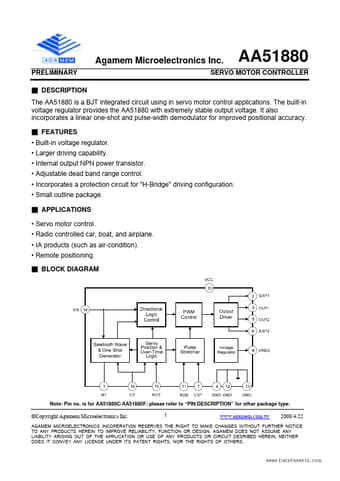

Additional preview pages of the AA51880 datasheet.

AA51880 Product details

Description

AA51880 SERVO MOTOR CONTROLLER The AA51880 is a BJT integrated circuit using in servo motor control applications.The built-in voltage regulator provides the AA51880 with extremely stable output voltage.It also incorporates a linear one-shot and pulse-width demodulator for improved positional accuracy.

Features

S.
Built-in voltage regulator.
Larger driving capability.
Internal output NPN power transistor.
Adjustable dead band range control.
Incorporates a protection circuit for "H-Bridge" driving configuration.
Small outline package.
