AA51861 - SINGLE-PHASE FULL-WAVE FAN MOTOR DRIVER

Agamem Microelectronic

The AA51861 by Agamem Microelectronic is a SINGLE-PHASE FULL-WAVE FAN MOTOR DRIVER. Below is the official datasheet preview.

📥 Download Datasheet

AA51861 SINGLE-PHASE FULL-WAVE FAN MOTOR DRIVER by Agamem Microelectronic - Datasheet Preview — Official preview page of the **AA51861** SINGLE-PHASE FULL-WAVE FAN MOTOR DRIVER datasheet (Agamem Microelectronic).

Datasheet Details

Part number	AA51861
Manufacturer	Agamem Microelectronic
File Size	215.29 KB
Description	SINGLE-PHASE FULL-WAVE FAN MOTOR DRIVER
Datasheet	AA51861_AgamemMicroelectronic.pdf

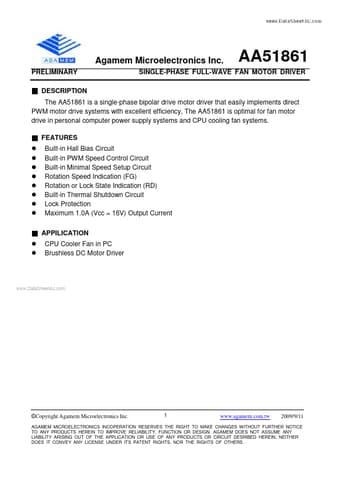

Additional preview pages of the AA51861 datasheet.

AA51861 Product details

Description

The AA51861 is a single-phase bipolar drive motor driver that easily implements direct PWM motor drive systems with excellent efficiency, The AA51861 is optimal for fan motor drive in personal computer power supply systems and CPU cooling fan systems.

Features

S Built-in Hall Bias Circuit Built-in PWM Speed Control Circuit Built-in Minimal Speed Setup Circuit Rotation Speed Indication (FG) Rotation or Lock State Indication (RD) Built-in Thermal Shutdown Circuit Lock Protection Maximum 1.0A (Vcc = 16V) Output Current.
