MSW2001-200, MSW2000-200 - Surface Mount PIN Diode SP2T Switches

Aeroflex Circuit Technology

The MSW2001-200 by Aeroflex Circuit Technology is a Surface Mount PIN Diode SP2T Switches. Below is the official datasheet preview.

📥 Download Datasheet

MSW2001-200 Surface Mount PIN Diode SP2T Switches by Aeroflex Circuit Technology - Datasheet Preview — Official preview page of the **MSW2001-200** Surface Mount PIN Diode SP2T Switches datasheet (Aeroflex Circuit Technology).

Datasheet Details

Part number	MSW2001-200, MSW2000-200
Manufacturer	Aeroflex Circuit Technology
File Size	552.03 KB
Description	Surface Mount PIN Diode SP2T Switches
Datasheet	MSW2000-200_AeroflexCircuitTechnology.pdf
Note	This datasheet PDF includes multiple part numbers: MSW2001-200, MSW2000-200. Please refer to the document for exact specifications by model.

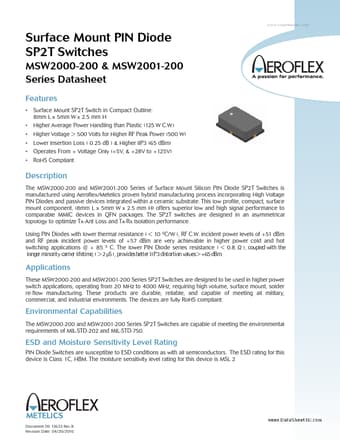

Additional preview pages of the MSW2001-200 datasheet.

MSW2001-200 Product details

Description

The MSW2000-200 and MSW2001-200 Series of Surface Mount Silicon PIN Diode SP2T Switches is manufactured using Aeroflex/Metelics proven hybrid manufacturing process incorporating High Voltage PIN Diodes and passive devices integrated within a ceramic substrate.

Features

Surface Mount SP2T Switch in Compact Outline: 8mm L x 5mm W x 2.5 mm H Higher Average Power Handling than Plastic (125 W C. W. ) Higher Voltage > 500 Volts for Higher RF Peak Power (500 W) Lower Insertion Loss ( 0.25 dB ) & Higher IIP3 (65 dBm) Operates From + Voltage Only (+5V, & +28V to +125V) RoHS Compliant.
