MSW2030-203 - Surface Mount PIN Diode

Aeroflex

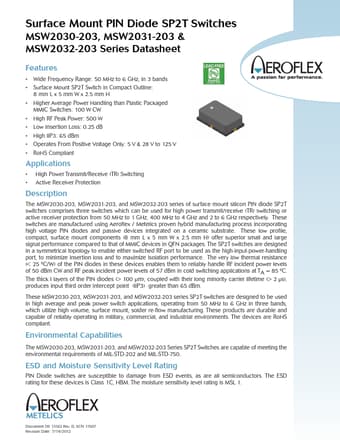

The MSW2030-203 by Aeroflex is a Surface Mount PIN Diode. Below is the official datasheet preview.

📥 Download Datasheet

MSW2030-203 Surface Mount PIN Diode by Aeroflex - Datasheet Preview — Official preview page of the **MSW2030-203** Surface Mount PIN Diode datasheet (Aeroflex).

Datasheet Details

Part number	MSW2030-203
Manufacturer	Aeroflex
File Size	531.14 KB
Description	Surface Mount PIN Diode
Datasheet	MSW2030-203-Aeroflex.pdf
Additional preview pages of the MSW2030-203 datasheet.

MSW2030-203 Product details

Description

The MSW2030-203, MSW2031-203, and MSW2032-203 series of surface mount silicon PIN diode SP2T switches comprises three switches which can be used for high power transmit/receive (TR) switching or active receiver protection from 50 MHz to 1 GHz, 400 MHz to 4 GHz and 2 to 6 GHz respectively.

Features

Wide Frequency Range: 50 MHz to 6 GHz, in 3 bands.
Surface Mount SP2T Switch in Compact Outline: 8 mm L x 5 mm W x 2.5 mm H.
Higher Average Power Handling than Plastic Packaged MMIC Switches: 100 W CW.
High RF Peak Power: 500 W.
Low Insertion Loss: 0.25 dB.
High IIP3: 65 dBm.
Operates From Positive Voltage Only: 5 V & 28 V to 125 V.
RoHS Compliant.
