AMS4154 - 32V Step-Down Converter

Description

The AMS4154 is a 2A, 330KHz, high voltage stepdown converter in a single thermally enhanced exposed paddle SO-8 package.

Its wide 6V to 32V input voltage range is ideal for a wide range of applications.

Features

  • Wide 6V to 32V Input Operating Range.
  • 34V Absolute Maximum Input.
  • Up to 2A Output Current.
  • Low ESR Ceramic Output Capacitor Stable.
  • Up to 90% Efficiency.
  • Less than 2µA Shutdown Mode.
  • 330 KHz Switching Frequency.
  • Hiccup Mode Over Current Protection.
  • Output Adjustable From 1.23V to 32V.
  • Reference Voltage Output.
  • Thermal Shutdown.
  • Operating Temperature -40°C to 125°C.
  • Available in S.

📥 Download Datasheet

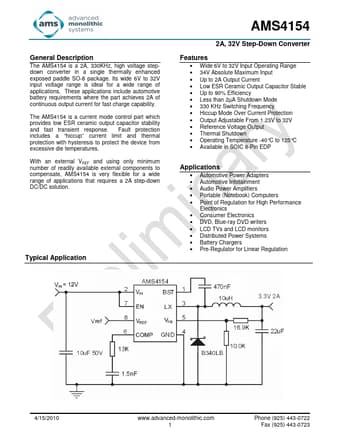

Datasheet preview – AMS4154

Datasheet Details

Part number AMS4154
Manufacturer Advanced Monolithic Systems
File Size 1.02 MB
Description 32V Step-Down Converter
Datasheet download datasheet AMS4154 Datasheet
Additional preview pages of the AMS4154 datasheet.

📁 Similar Datasheet

  • AMS4006 - N-CH 40V Fast Switching MOSFETs (Axelite)
  • AMS402T - (AMSxxxT) Light Sensor (Panasonic)
  • AMS4210 - Dual N-CH Fast Switching MOSFETs (Axelite)
  • AMS4710 - Miniaturized pressure transmitter (Analog Microelectronics)
  • AMS4711 - Miniaturized pressure transmitter (Analog Microelectronics)
  • AMS-117 - Low Noise Amplifier (MA-COM)
  • AMS-162 - Low Noise Amplifier (MA-COM)
  • AMS0026 - N-CH100V Fast Switching MOSFETs (axelite)
  • AMS104 - (AMSxxxx) Light Sensor (Panasonic)
  • AMS104T - (AMSxxxT) Light Sensor (Panasonic)
Other Datasheets by Advanced Monolithic Systems
  • AMS4155 - 2A OUTPUT PWM BUCK CONVERTER
  • AMS4106 - 5A SYNCHRONUS PWM BUCK CONVERTER
  • AMS4122 - SINGLE 4A/DUAL 2A BUCK CONVERTER
  • AMS4123 - 3A 20V Step-Down Converter + 1A LDO
  • AMS4040 - MICROPOWER SHUNT VOLTAGE REFERENCE
  • AMS4041 - MICROPOWER SHUNT VOLTAGE REFERENCE
  • AMS421 - 0.5V SHUNT REGULATOR
  • AMS431 - PRECISION ADJUSTABLE SHUNT REGULATOR

Full PDF Text Transcription

Click to expand full text
General Description The AMS4154 is a 2A, 330KHz, high voltage stepdown converter in a single thermally enhanced exposed paddle SO-8 package. Its wide 6V to 32V input voltage range is ideal for a wide range of applications. These applications include automotive battery requirements where the part achieves 2A of continuous output current for fast charge capability. The AMS4154 is a current mode control part which provides low ESR ceramic output capacitor stability and fast transient response. Fault protection includes a “hiccup” current limit and thermal protection with hysteresis to protect the device from excessive die temperatures.
