AMS4122 Datasheet SINGLE 4A/DUAL 2A BUCK CONVERTER

Manufacturer: Advanced Monolithic Systems

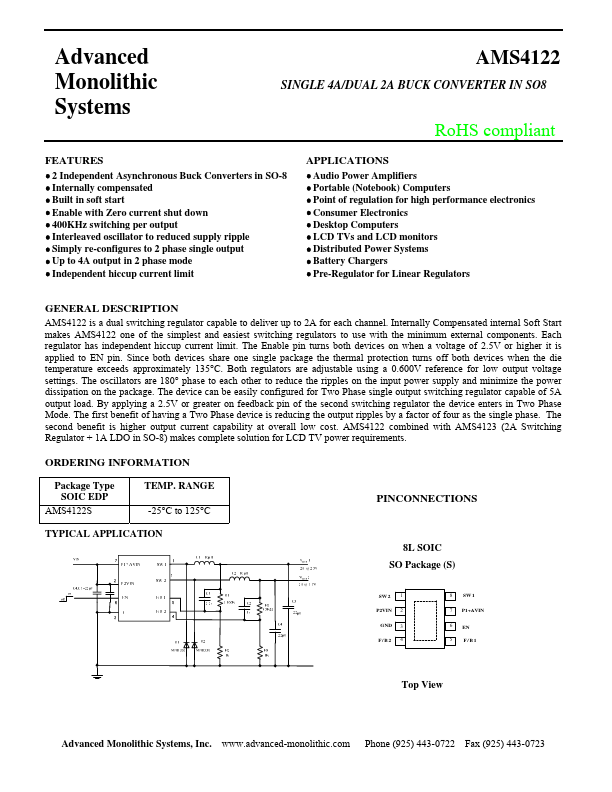

AMS4122 single 4a/dual 2a buck converter by Advanced Monolithic Systems - Datasheet Preview

Datasheet Details

Part number	AMS4122
Manufacturer	Advanced Monolithic Systems
File Size	380.13 KB
Description	SINGLE 4A/DUAL 2A BUCK CONVERTER
Datasheet	AMS4122 Datasheet

General Description

AMS4122 is a dual switching regulator capable to deliver up to 2A for each channel.

Internally Compensated internal Soft Start makes AMS4122 one of the simplest and easiest switching regulators to use with the minimum external components.

Each regulator has independent hiccup current limit.

Overview

Advanced Monolithic Systems AMS4122 SINGLE 4A/DUAL 2A BUCK CONVERTER IN SO8 RoHS.

Key Features

2 Independent Asynchronous Buck Converters in SO-8.
Internally compensated.
Built in soft start.
Enable with Zero current shut down.
400KHz switching per output.
Interleaved oscillator to reduced supply ripple.
Simply re-configures to 2 phase single output.
Up to 4A output in 2 phase mode.
Independent hiccup current limit.
