29F800 - 8 Megabit (1 M x 8-Bit/512 K x 16-Bit) CMOS 5.0 Volt-only / Boot Sector Flash Memory-Die Revision 1

Advanced Micro Devices

Datasheet Details

Part number	29F800
Manufacturer	Advanced Micro Devices
File Size	207.16 KB
Description	8 Megabit (1 M x 8-Bit/512 K x 16-Bit) CMOS 5.0 Volt-only / Boot Sector Flash Memory-Die Revision 1
Datasheet	29F800_AdvancedMicroDevices.pdf

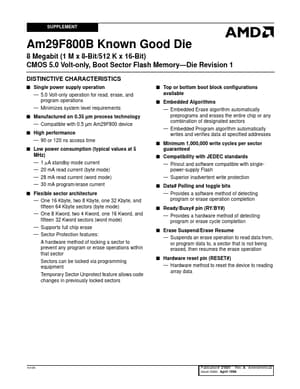

The Am29F800B in Known Good Die (KGD) form is a 8 Mbit, 5.0 volt-only Flash memory.

of the Am29F800, which was manufactured using 0.5 µm process technology. To eliminate bus contention the device has separate chip enable (CE#), write enable (WE#) and output enable (OE#) controls. The device requires only a single 5.0 volt power supply for both read and write functions. Internally generated and regulated voltages are provided for the program and erase operations. The device is entirely command set compatible with the JEDEC single-power-supply Flash standard. Commands are written.
