ALD1801B 8 BIT MICROPOWER MULTIPLYING D/A CONVERTER

ALD1801B Description

ADVANCED LINEAR DEVICES, INC.ALD1801A/ALD1801B ALD1801 8 BIT MICROPOWER MULTIPLYING D/A CONVERTER GENERAL .
The ALD1801 is an 8-bit monolithic current output digital to analog converter designed to provide low power, low operating voltage and simple operatio.

ALD1801B Features

* Low voltage 3V to 12V operation Low power 1.8mW max @ 3.3V Single supply operation (5V or 3.3V) Direct CMOS logic interface Complementary current outputs Nonlinearity to 0.1% max over temperature range
* High input impedance

ALD1801B Applications

* in +5V single power supply and ± 5V dual power supply systems, as well as +3V to +12V battery operated systems. Device characteristics are specified for +5V single supply and 3.3V dual supply systems. The ALD1801 is manufactured with Advanced Linear Devices’ enhanced ACMOS silicon gate CMOS process

📥 Download Datasheet

Preview of ALD1801B PDF

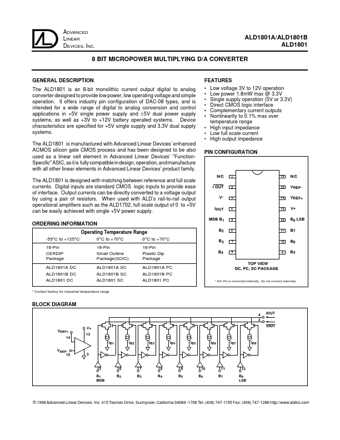

datasheet Preview Page 2 datasheet Preview Page 3
