DSS040 - (DSSxxx) Board to Board Interconnections

Product Overview

📥 Download Datasheet

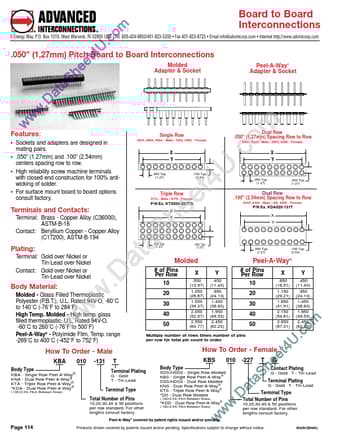

DSS040 (DSSxxx) Board to Board Interconnections by Advanced Interconnections - Datasheet Preview — Datasheet preview – DSS040

Datasheet Details

Part number	DSS040
Manufacturer	Advanced Interconnections
File Size	186.15 KB
Description	(DSSxxx) Board to Board Interconnections
Datasheet	DSS040 Datasheet
Note	This datasheet PDF includes multiple part numbers: DSS040, DSS020. Please refer to the document for exact specifications by model.
Additional preview pages of the DSS040 datasheet.

Product details

Features

Molded Adapter & Socket Adapter & Socket Single Row m o c Board to Board Interconnections ¤ Peel-A-Way Adapter & Socket Adapter & Socket.
Sockets and adapters are designed in mating pairs.
.050” (1.27mm) and .100” (2.54mm) centers spacing row to row.
High reliability screw machine terminals with closed end construction for 100% antiwicking of solder.
For surface mount board to board options consult factory. SDA, NBA, KBA - Male / SDS, KBS - Female Du.
