ACTR433A Datasheet (Advanced Crystal Technology)

ACTR433A, SAW

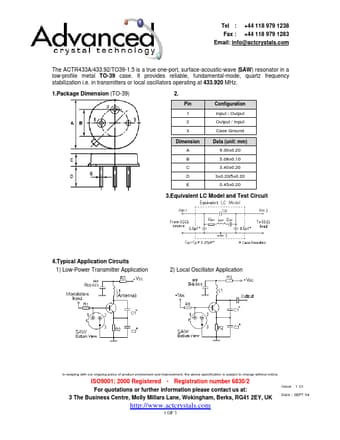

Tel : +44 118 979 1238 Fax : +44 118 979 1283 Email: info@actcrystals.com The ACTR433A/433.92/TO39-1.5 is a true one-port, surface-acoustic-wave (SAW) resonator in a low-profile metal TO-39 case.

It provides reliable, fundamental-mode, quartz frequency stabilization i.e.

in transmitters or local oscillators operating at 433.920 MHz.

1.Package Dimension (TO-39) 2.

Pin Configuration 1 Input / Output 2 Output / Input 3 Case Ground Dimension A B C D E Data (unit: mm) 9.30±0.20 5.08±0.10 3.40±0
