ADP600B12TFNF - 1200V IGBT ED3 Power Module

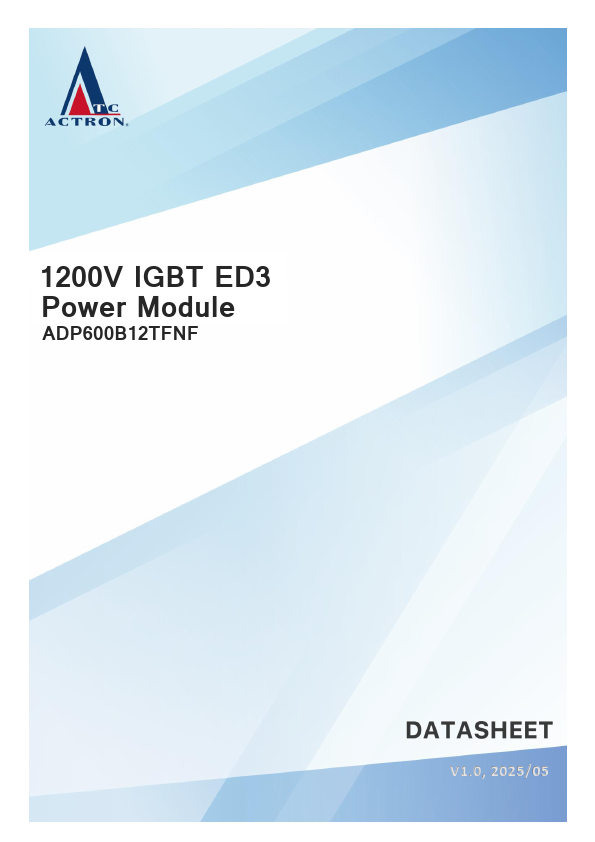

The ADP600B12TFNF by Actron Technology is a 1200V IGBT ED3 Power Module. Below is the official datasheet preview.

Datasheet Details

Part number	ADP600B12TFNF
Manufacturer	Actron Technology
File Size	1.01 MB
Description	1200V IGBT ED3 Power Module
Datasheet	ADP600B12TFNF-ActronTechnology.pdf

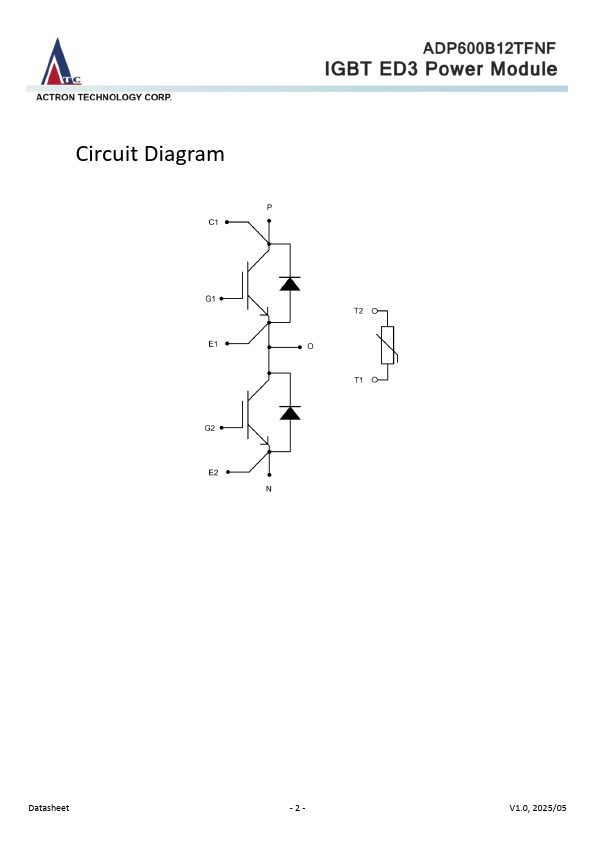

Additional preview pages of the ADP600B12TFNF datasheet.

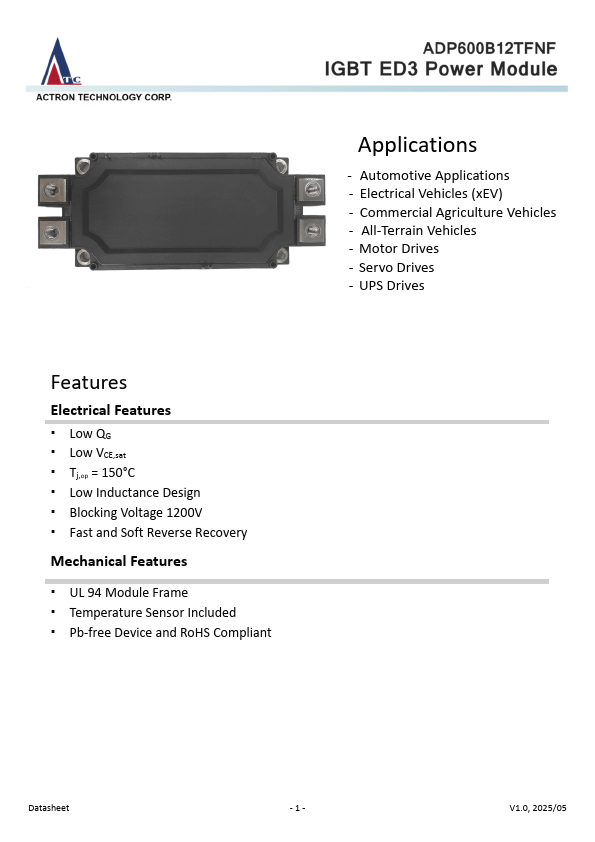

Electrical Features  Low QG  Low VCE,sat  Tj,op = 150°C  Low Inductance Design  Blocking Voltage 1200V  Fast and Soft Reverse Recovery Mechanical Features  UL 94 Module Frame  Temperature Sensor Included  Pb-free Device and RoHS Compliant.
