AGM1264W Datasheet (AZ Displays) - LIQUID CRYSTAL DISPLAY

AGM1264W, LIQUID CRYSTAL DISPLAY

No connection C68= H 6800 series; C68= L 8080 series.

LCD driver Power supply voltages LCD driver Power supply voltages LCD driver Power supply voltages LCD driver Power supply voltages LCD driver Power supply voltages Capacitor 2- connected to the internal voltage converter Capacitor 2+ connected

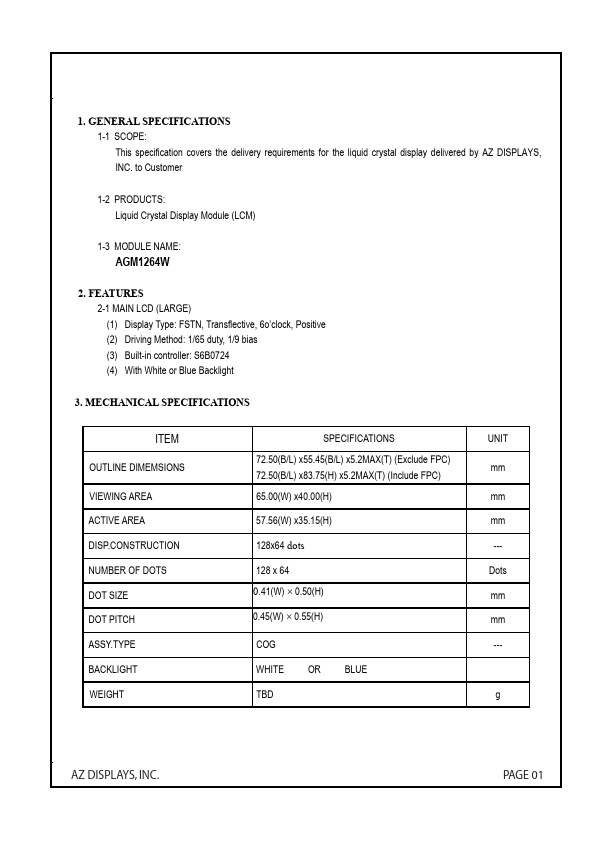

AGM1264W Features

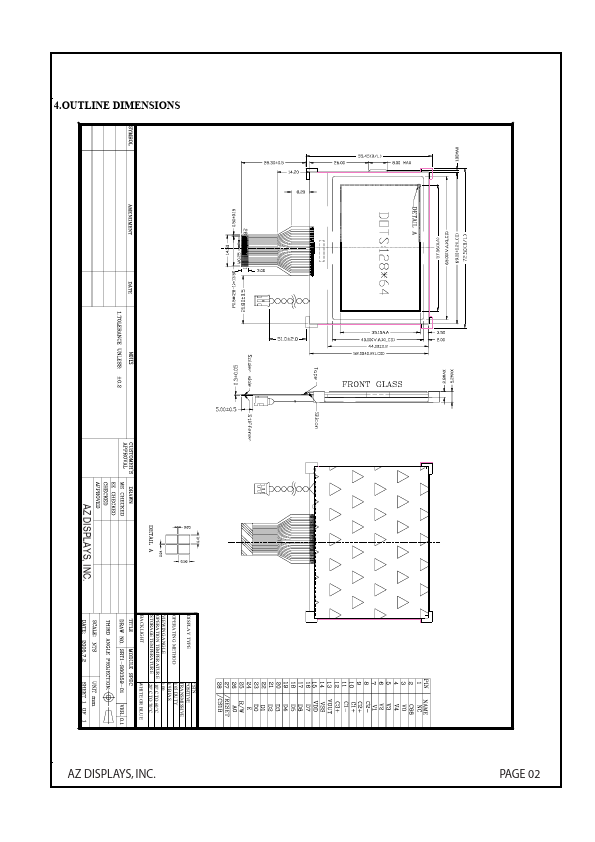

* 2-1 MAIN LCD (LARGE) (1) Display Type: FSTN, Transflective, 6o’clock, Positive (2) Driving Method: 1/65 duty, 1/9 bias (3) Built-in controller: S6B0724 (4) With White or Blue Backlight 3. MECHANICAL SPECIFICATIONS ITEM OUTLINE DIMEMSIONS VIEWING AREA ACTIVE AREA DISP.CONSTRUCTION NUMBER OF DOTS DOT
