AGM1264H, Liquid Crystal Display

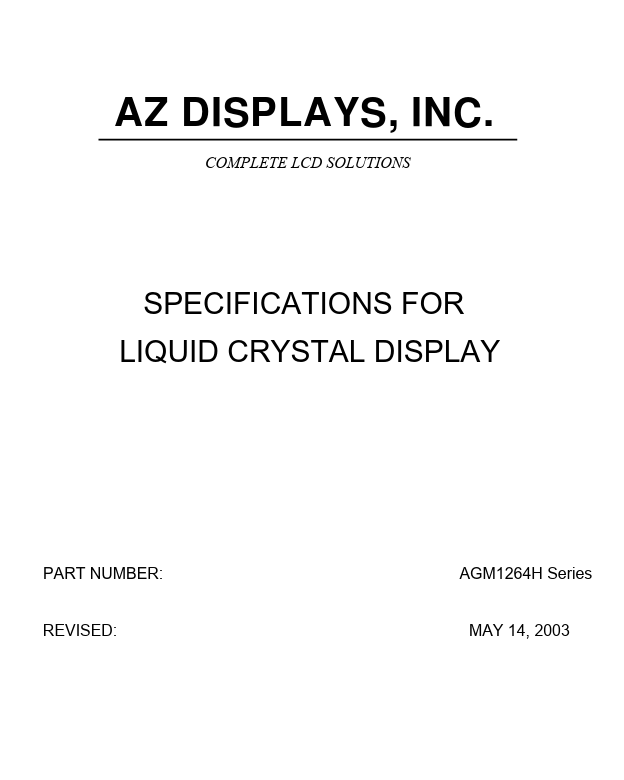

AZ DISPLAYS, INC.

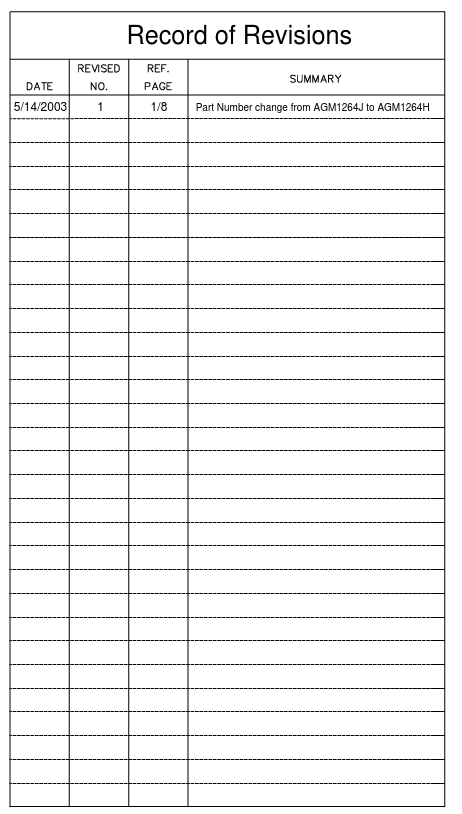

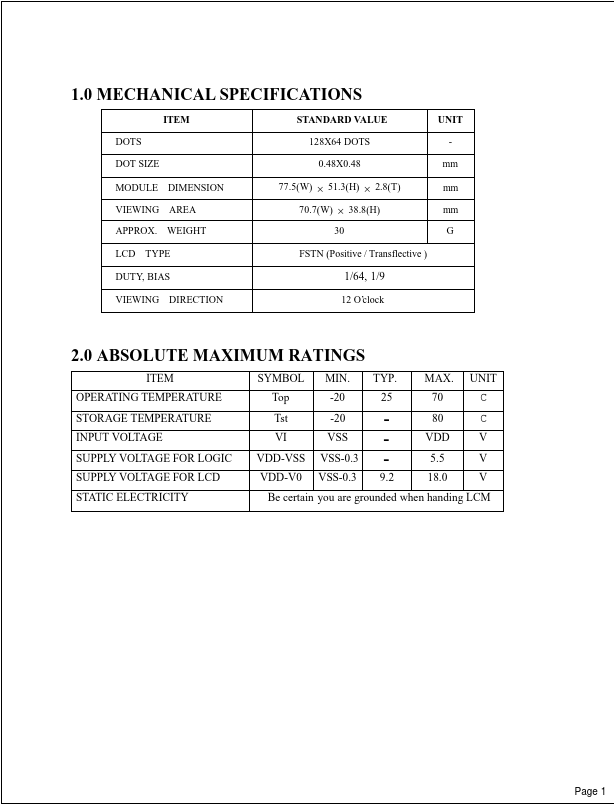

COMPLETE LCD SOLUTIONS SPECIFICATIONS FOR LIQUID CRYSTAL DISPLAY PART NUMBER: REVISED: AGM1264H Series MAY 14, 2003 Record of Revisions 5/14/2003 1 1/8 Part Number change from AGM1264J to AGM1264H 1.0 MECHANICAL SPECIFICATIONS ITEM STANDARD VALUE UNIT DOTS 128X64 DOTS - DOT SIZE 0.48X0.48 mm MODULE DIMENSION VIEWING AREA APPROX.

WEIGHT 77.5(W) × 51.3(H) × 2.8(T) mm 70.7(W) × 38.8(H) mm 30 G LCD TYPE FSTN (Positive / Transflective ) DUTY, BIAS 1/64, 1/
