AX3132 - PWM Control 2A Step-Down Converter

AX3132 Description

AX3132 PWM Control 2A Step-Down Converter  GENERAL .
AX3132 consists of step-down switching regulator with PWM control.

AX3132 Features

* as low current consumption. R ` w Since this converter can an input voltage up to 32V, it is also suitable for the Ûmaccommodate V om c operation via an AC adapter. . h  FEATURES ww ote f o w. g c - Input voltage：8V to 32V - Output voltage：3.3V to 26V - Duty ratio：0% to 100% PWM control - Oscill

AX3132 Applications

* is sufficient. of g . w Ûm m w Output Capacitor w Selection The output capacitor is required to filter the output and provide regulator loop stability. The important capacitor parameters are; the 100 KHz Equivalent Series Resistance (ESR), the RMS ripples current rating, voltage rating, and capa

📥 Download Datasheet

Preview of AX3132 PDF

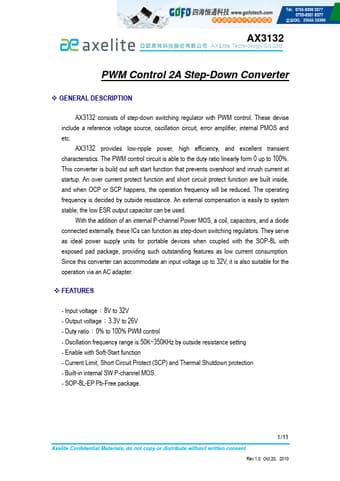

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AX3132
Manufacturer
AXElite
File Size
763.75 KB
Datasheet
AX3132-AXElite.pdf
Description
PWM Control 2A Step-Down Converter
