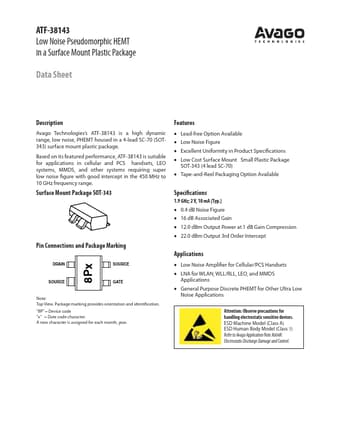

ATF-38143 Datasheet Preview — Preview of ATF-38143 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: ATF-38143
Manufacturer: AVAGO
File Size: 281.11 KB
Datasheet: ATF-38143-AVAGO.pdf
Description: Low Noise Pseudomorphic HEMT

ATF-38143 Product details

Description

Avago Technologies’s ATF-38143 is a high dynamic range, low noise, PHEMT housed in a 4-lead SC-70 (SOT343) surface mount plastic package.

Features

Lead-free Option Available.
Low Noise Figure.
Excellent Uniformity in Product Specifications.
Low Cost Surface Mount Small Plastic Package SOT-343 (4 lead SC-70).
Tape-and-Reel Packaging Option Available Specifications 1.9 GHz; 2 V, 10 mA (Typ. ).
0.4 dB Noise Figure.
16 dB Associated Gain.
12.0 dBm Output Power at 1 dB Gain Compression.
22.0 dBm Output 3rd Order Intercept.
