ACMD-7410 - UMTS/NCDMA/Co-band GSM Rx Band 2 Duplexer

AVAGO

The ACMD-7410 by AVAGO is a UMTS/NCDMA/Co-band GSM Rx Band 2 Duplexer. Below is the official datasheet preview.

📥 Download Datasheet

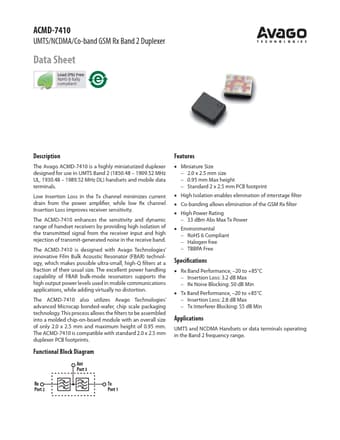

ACMD-7410 UMTS/NCDMA/Co-band GSM Rx Band 2 Duplexer by AVAGO - Datasheet Preview — Official preview page of the **ACMD-7410** UMTS/NCDMA/Co-band GSM Rx Band 2 Duplexer datasheet (AVAGO).

Datasheet Details

Part number	ACMD-7410
Manufacturer	AVAGO
File Size	443.47 KB
Description	UMTS/NCDMA/Co-band GSM Rx Band 2 Duplexer
Datasheet	ACMD-7410-AVAGO.pdf
Additional preview pages of the ACMD-7410 datasheet.

ACMD-7410 Product details

Description

The Avago ACMD-7410 is a highly miniaturized duplexer designed for use in UMTS Band 2 (1850.48 1909.52 MHz UL, 1930.48 1989.52 MHz DL) handsets and mobile data terminals.

Features

x Miniature Size.
2.0 x 2.5 mm size.
0.95 mm Max height.
Standard 2 x 2.5 mm PCB footprint x High Isolation enables elimination of interstage filter x Co-banding allows elimination of the GSM Rx filter x High Power Rating.
33 dBm Abs Max Tx Power x Environmental.
RoHS 6 Compliant.
Halogen free.
TBBPA Free Specifications x Rx Band Performance,.
20 to +85°C.
Insertion Loss: 3.2 dB Max.
Rx Noise Blocking: 50 dB.
