ACMD-7605 - Miniature UMTS Band 8 Duplexer

Avago

The ACMD-7605 by Avago is a Miniature UMTS Band 8 Duplexer. Below is the official datasheet preview.

📥 Download Datasheet

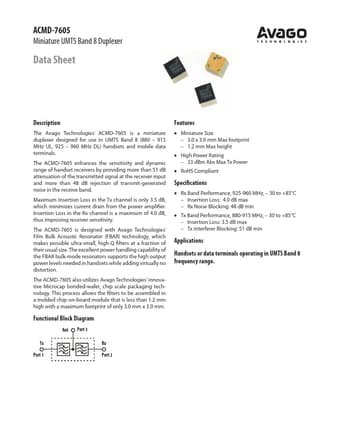

ACMD-7605 Miniature UMTS Band 8 Duplexer by Avago - Datasheet Preview — Official preview page of the **ACMD-7605** Miniature UMTS Band 8 Duplexer datasheet (Avago).

Datasheet Details

Part number	ACMD-7605
Manufacturer	Avago
File Size	639.31 KB
Description	Miniature UMTS Band 8 Duplexer
Datasheet	ACMD-7605-Avago.pdf
Additional preview pages of the ACMD-7605 datasheet.

ACMD-7605 Product details

Description

The Avago Technologies’ ACMD-7605 is a miniature duplexer designed for use in UMTS Band 8 (880 915 MHz UL, 925 960 MHz DL) handsets and mobile data terminals.

Features

Miniature Size.
3.0 x 3.0 mm Max footprint.
1.2 mm Max height.
High Power Rating.
33 dBm Abs Max Tx Power.
RoHS Compliant Specifications.
Rx Band Performance, 925-960 MHz,.
30 to +85°C.
Insertion Loss: 4.0 dB max.
Rx Noise Blocking: 48 dB min.
Tx Band Performance, 880-915 MHz,.
30 to +85°C.
Insertion Loss: 3.5 dB max.
Tx Interferer Blocking: 51 dB min Applica.
