ADJD-MJ51, ADJD-MJ50 - (ADJD-MJxx) High Performance RGB LED Light Source

AVAGO TECHNOLOGIES LIMITED

The ADJD-MJ51 by AVAGO TECHNOLOGIES LIMITED is a (ADJD-MJxx) High Performance RGB LED Light Source. Below is the official datasheet preview.

📥 Download Datasheet

ADJD-MJ51 (ADJD-MJxx) High Performance RGB LED Light Source by AVAGO TECHNOLOGIES LIMITED - Datasheet Preview — Official preview page of the **ADJD-MJ51** (ADJD-MJxx) High Performance RGB LED Light Source datasheet (AVAGO TECHNOLOGIES LIMITED).

Datasheet Details

Part number	ADJD-MJ51, ADJD-MJ50
Manufacturer	AVAGO TECHNOLOGIES LIMITED
File Size	501.02 KB
Description	(ADJD-MJxx) High Performance RGB LED Light Source
Datasheet	ADJD-MJ50_AVAGOTECHNOLOGIESLIMITED.pdf
Note	This datasheet PDF includes multiple part numbers: ADJD-MJ51, ADJD-MJ50. Please refer to the document for exact specifications by model.

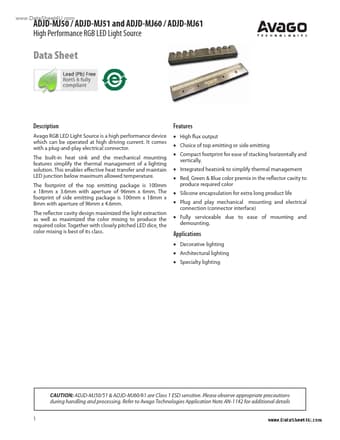

Additional preview pages of the ADJD-MJ51 datasheet.

ADJD-MJ51 Product details

Description

Avago RGB LED Light Source is a high performance device which can be operated at high driving current.

Features

simplify the thermal management of a lighting solution. This enables effective heat transfer and maintain LED junction below maximum allowed temperature. The footprint of the top emitting package is 100mm x 18mm x 3.6mm with aperture of 96mm x 6mm. The footprint of side emitting package is 100mm x 18mm x 8mm with aperture of 96mm x 4.6mm. The reflector cavity design maximized the light extraction as well as maximized the color mixing to produce the required color. Together with closely pitched L.
