ADJD-MJ60 - (ADJD-MJxx) High Performance RGB LED Light Source

Download the ADJD-MJ60 datasheet PDF (ADJD-MJ50 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for (adjd-mjxx) high performance rgb led light source.

Description

Avago RGB LED Light Source is a high performance device which can be operated at high driving current.

It comes with a plug-and-play electrical connector.

Features

  • simplify the thermal management of a lighting solution. This enables effective heat transfer and maintain LED junction below maximum allowed temperature. The footprint of the top emitting package is 100mm x 18mm x 3.6mm with aperture of 96mm x 6mm. The footprint of side emitting package is 100mm x 18mm x 8mm with aperture of 96mm x 4.6mm. The reflector cavity design maximized the light extraction as well as maximized the color mixing to produce the required color. Together with closely pitched L.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (ADJD-MJ50_AVAGOTECHNOLOGIESLIMITED.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number ADJD-MJ60
Manufacturer AVAGO TECHNOLOGIES LIMITED
File Size 501.02 KB
Description (ADJD-MJxx) High Performance RGB LED Light Source
Datasheet download datasheet ADJD-MJ60 Datasheet

📁 Similar Datasheet

Other Datasheets by AVAGO TECHNOLOGIES LIMITED

Full PDF Text Transcription

Click to expand full text

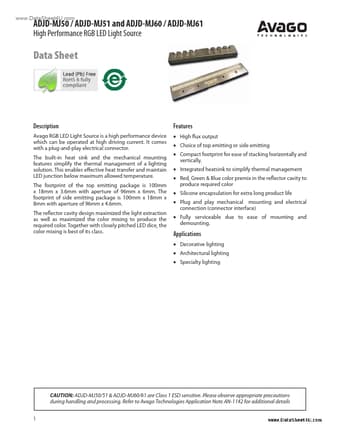

www.DataSheet4U.com ADJD-MJ50 / ADJD-MJ51 and ADJD-MJ60 / ADJD-MJ61 High Performance RGB LED Light Source Data Sheet Description Avago RGB LED Light Source is a high performance device which can be operated at high driving current. It comes with a plug-and-play electrical connector. The built-in heat sink and the mechanical mounting features simplify the thermal management of a lighting solution. This enables effective heat transfer and maintain LED junction below maximum allowed temperature. The footprint of the top emitting package is 100mm x 18mm x 3.6mm with aperture of 96mm x 6mm. The footprint of side emitting package is 100mm x 18mm x 8mm with aperture of 96mm x 4.6mm.
