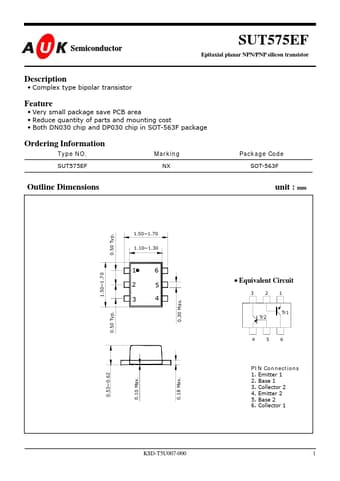

Complex type bipolar transistor Feature Very small package save PCB area Reduce quantity of parts and mounting cost Both DN030 chip and DP030 chip in SOT-563F package Ordering Information Type NO.SUT575EF Marking NX Outline Dimensions Package Code SOT-563F unit : mm 0.50 Typ.1.50~1.70 0.50 Typ.1.50~1.70 1.10~1.30 16 25 34 0.18 Max.0.30 Max. Equivalent Circuit 3 21 Tr1 Tr2 4 56 PIN Connections 1. Emitter 1 2. Base 1 3. Collector 2
