Datasheet Details
| Part number | SUT509EF |
|---|---|
| Manufacturer | AUK |
| File Size | 275.84 KB |
| Description | NPN/PNP Epitaxial Planar Silicon Transistor |
| Datasheet |
 SUT509EF-AUK.pdf
|
| Part number | SUT509EF |
|---|---|
| Manufacturer | AUK |
| File Size | 275.84 KB |
| Description | NPN/PNP Epitaxial Planar Silicon Transistor |
| Datasheet |
SUT509EF-AUK.pdf
|

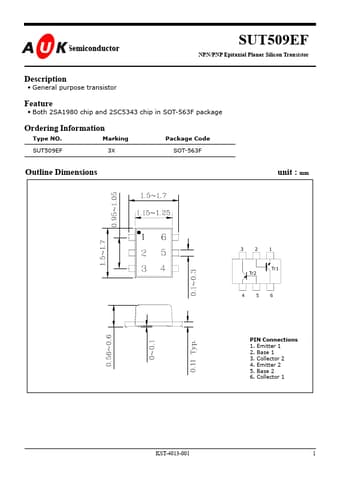

General purpose transistor Feature Both 2SA1980 chip and 2SC5343 chip in SOT-563F package Ordering Information Type NO.Marking Package Code SUT509EF 3X SOT-563F Outline Dimensions unit : mm 3 21 Tr1 Tr2 4 56 PIN Connections 1. Emitter 1 2. Base 1 3. Collector 2 4. Emitter 2 5. Base 2 6. Collector 1 KST-4013-001 1 Absolute maximum ratings (Tr1, Tr2) Characteristic Symbol Collector-Base voltage Collector-Emitter voltage Emitter-base voltage Collector current C
