Datasheet Details
| Part number | SUT390EF |
|---|---|
| Manufacturer | AUK |
| File Size | 163.27 KB |
| Description | Epitaxial planar NPN silicon transistor |
| Datasheet |
 SUT390EF-AUK.pdf
|
| Part number | SUT390EF |
|---|---|
| Manufacturer | AUK |
| File Size | 163.27 KB |
| Description | Epitaxial planar NPN silicon transistor |
| Datasheet |
SUT390EF-AUK.pdf
|

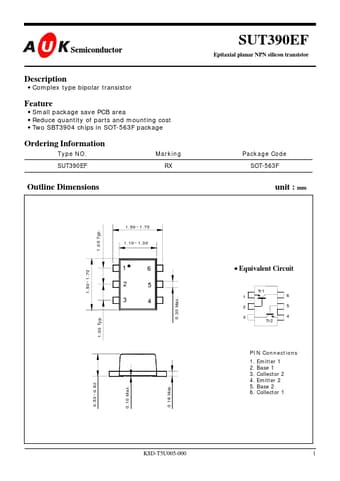

Complex type bipolar transistor Feature Small package save PCB area Reduce quantity of parts and mounting cost Two SBT3904 chips in SOT-563F package Ordering Information Type NO.SUT390EF Marking RX Outline Dimensions SUT390EF Epitaxial planar NPN silicon transistor Package Code SOT-563F unit : mm 1.00 Typ.1.50~1.70 1.50~1.70 1.10~1.30 1 6 25 34 0.30 Max. Equivalent Circuit Tr1 1 2 3 Tr2 6 5 4 PIN Connections 1. Emitter 1 2
