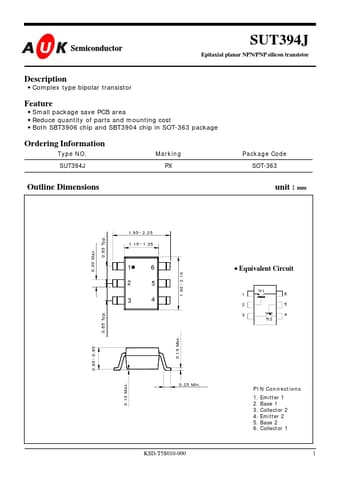

Semiconductor
SUT394J
Epitaxial planar NPN/PNP silicon transistor
Description
• Complex type bipolar transistor
Feature
• Small package save PCB area • Reduce quantity of parts and mounting cost • Both SBT3906 chip and SBT3904 chip in SOT-363 package
Ordering Information
Type NO.
SUT394J
Marking PX
Outline Dimensions
Package Code SOT-363
unit : mm
0.30 Max. 0.65 Typ.
1.95~2.25 1.15~1.35
16 25 34
1.90~2.10
• Equivalent Circuit
Tr1 1
6
25
34 Tr2
0.65 Typ.
0.19 Max.
0.85~0.95
0.10 Max.
0.25 Min.
KSD-T5S010-000
PIN Connections 1. Emitter 1 2. Base 1 3. Collector 2 4. Emitter 2 5. Base 2 6.
