STK0765P Advanced Power MOSFET

STK0765P Description

Semiconductor STK0765P Advanced Power MOSFET SWITCHING REGULATOR APPLICATIONS .

STK0765P Features

* High Voltage: BVDSS=650V(Min. )
* Low Crss : Crss=19pF(Typ. )
* Low gate charge : Qg=49nc(Typ. )
* Low RDS(on) :RDS(on)=1.2Ω(Max. ) www. DataSheet4U. com Ordering Information Type NO. STK0765P Marking STK0765 Package Code TO-220AB-3L Outline Dimensions 9.80~10.20 Φ3.70

📥 Download Datasheet

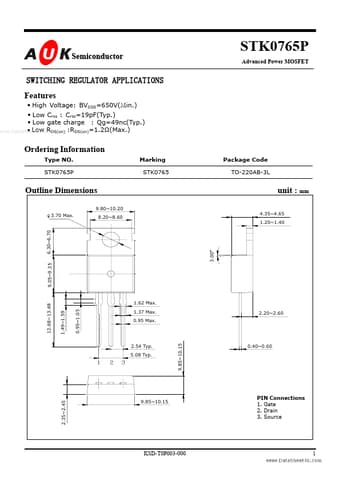

Preview of STK0765P PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STK0765P
Manufacturer
AUK
File Size
530.01 KB
Datasheet
STK0765P_AUK.pdf
Description
Advanced Power MOSFET
